Simultaneous fast charging for all your favourite devices
Enjoy all the benefits that a modern solution for charging small electronics offers! The network charger from Acefast perfectly combines speed, stability, wide compatibility and safety. It offers you a total of three ports - two USB-C and one USB-A. If you don't want to waste time, you can use them at the same time - the energy will be smartly redistributed between them. Most smart devices today have just one of these types of connectors, which means only one thing for you - the charger will work with probably all the ones that make your life more pleasant on a daily basis. A strong impression is made by its overall great power of 65 W and the support of most fast charging protocols when using the ports separately. Just to name a few, for example Power Delivery, PPS, QC 4+, QC 3.0, AFC, FCP and SCP. So you can get your phone, tablet, laptop, game console, speakers and Apple accessories ready for action again in a flash!

All available methods of protecting electronic devices in one package
Don't let the simple design fool you. Inside, you would find the best safety protection features that you have to cheer about even if you are not an electronic nerd. Acefast uses state-of-the-art GaN technology to ensure that charging is more stable and at the same time the operating temperature of the charger does not reach dangerous numbers. It also relies on protective circuits that make it resistant to accidental short-circuiting (for example, when the cable is crushed or cut). There is a built-in smart chip that ensures protection against power peaks during charging, against overheating, battery overcharging or lightning strikes in the distribution network. In addition, the station is magnetically and electrostatically shielded to resist the inductive effects of surrounding devices and to avoid the risk of voltage increases from electrostatic surfaces. The use of non-flammable materials on the outer box is the last part in the bulletproof multi-level security of the charger itself and the protection of connected devices.

Extremely compact and great for travel
The Acefast GaN charger has dimensions of approximately 9 x 6 x 5 cm and weighs only 136 g, which makes it a perfectly portable piece. Yes, such a small box can replace three separate chargers that would otherwise not fit in your pocket. It does not take up much space either on your worktable or a backpack. With its elegant design, it will not be distracting in any interior, whatever the style of your home or office.

Technical specifications
3 port USB mains charger
Ports: 2x USB-C, 1x USB-A
Maximum power 65 W
Support for most fast charging protocols
GaN technology for more stable charging and faster cooling
Magnetically and electrostatically shielded
Integrated smart chip for multiple security protection
Protection against short circuit, fluctuating current
Protection against lightning strikes in the distribution network
Protection against overheating with the help of AI circuits
Battery overcharge protection
Safety certification - CB/CE/ROHS 2.0/EAC/ERP6 energy efficiency
Non-flammable and extremely durable material
Compact design, smaller dimensions
Ideal for home, office and travel
Wide compatibility with phones/tablets/game consoles/laptops etc.
Dimensions: 96,4 x 30,3 x 52,8 mm
Weight: 136 g
Colour: white

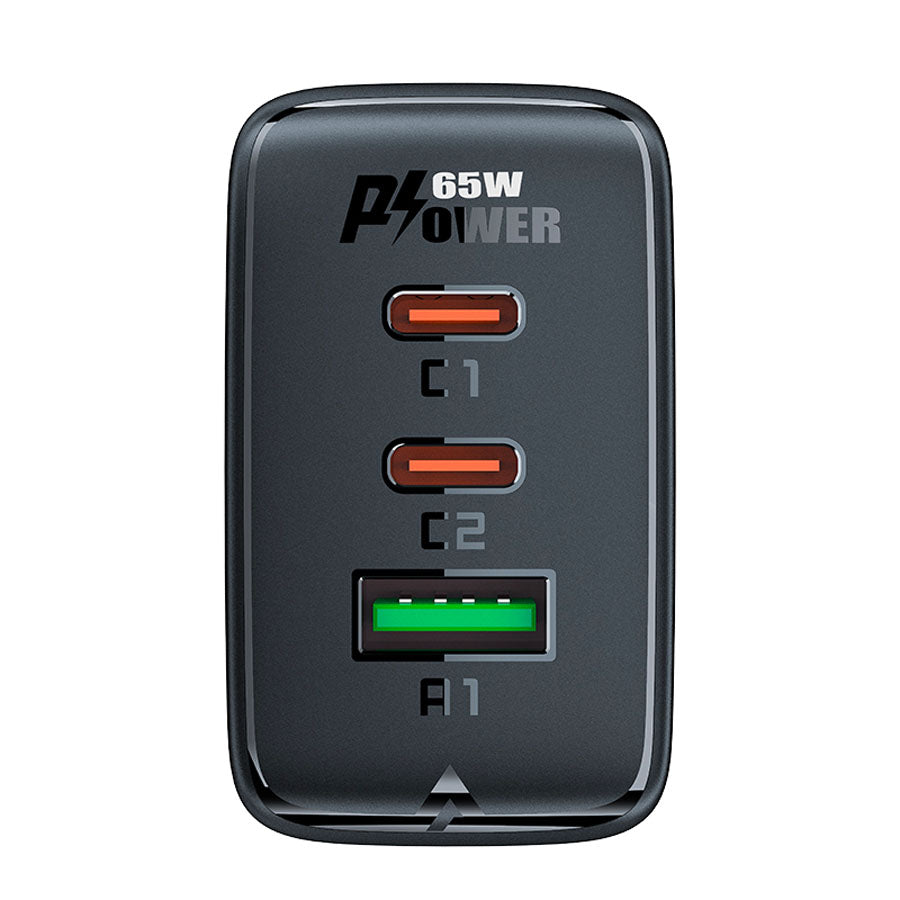

Ports
Input: AC100-240V, 1,5A, 50Hz/60Hz, EU plug
Output - one port:
USB-C1: 3,3V-21V⎓3A (PPS), 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3,25A - max. 65W (PD / PPS / QC4+ / AFC / SCP / FCP)
USB-C2: 3,3V-11V⎓2,7A (PPS), 5V⎓3A, 9V⎓3A, 12V⎓2,5A, 15V⎓2A, 20V⎓1,5A - max. 30W (PD / PPS / QC4+ / AFC / SCP / FCP)
USB-A1: 4,5V⎓5A, 5V⎓4,5A, 5V⎓3A, 9V⎓3A, 12V⎓2,5A - max. 30W (QC3.0 / AFC / SCP / FCP)

Output - two ports:
USB-C1 + USB-C2: 45W + 20W
USB-C1 + USB-A1: 45W + 18W
USB-C2 + USB-A1: 5 V / 3,6 A (18 W)

Output - three ports:
USB-C1 + [USB-C2 + USB-A1]: 45W + [18W]
Package contents
USB charger
Manual
Documentation
Manual in English
